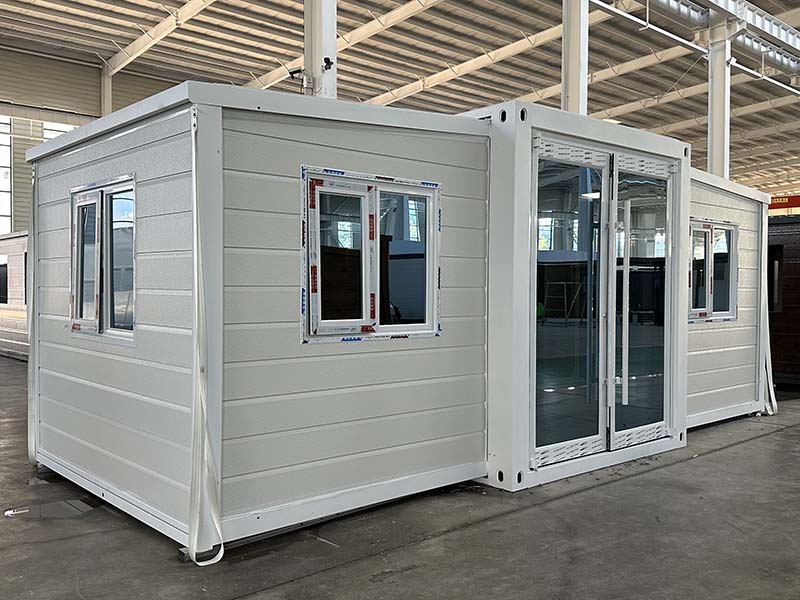

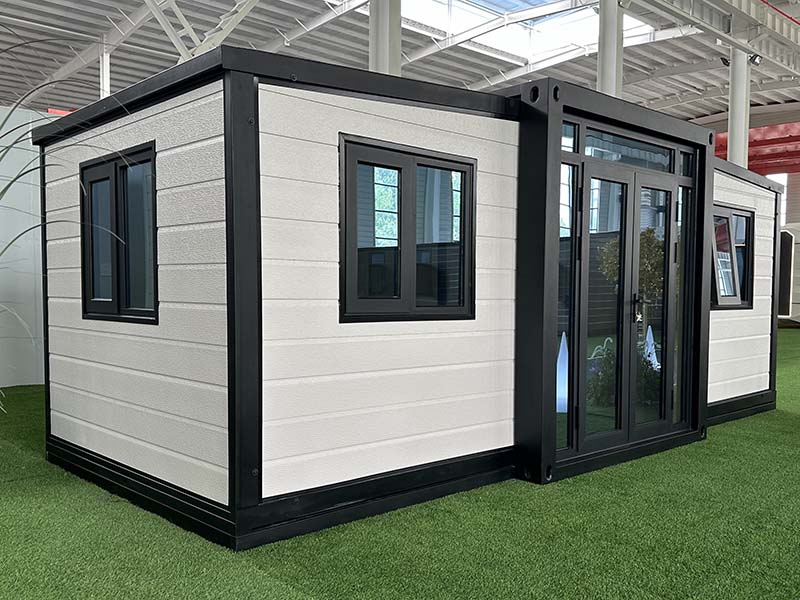

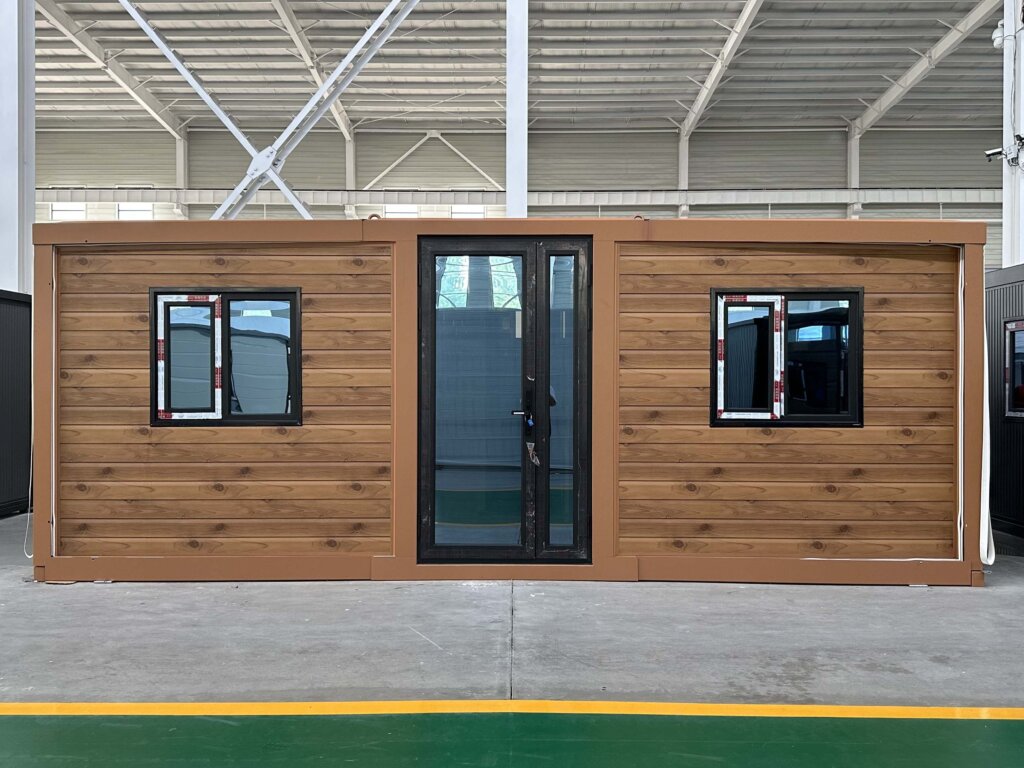

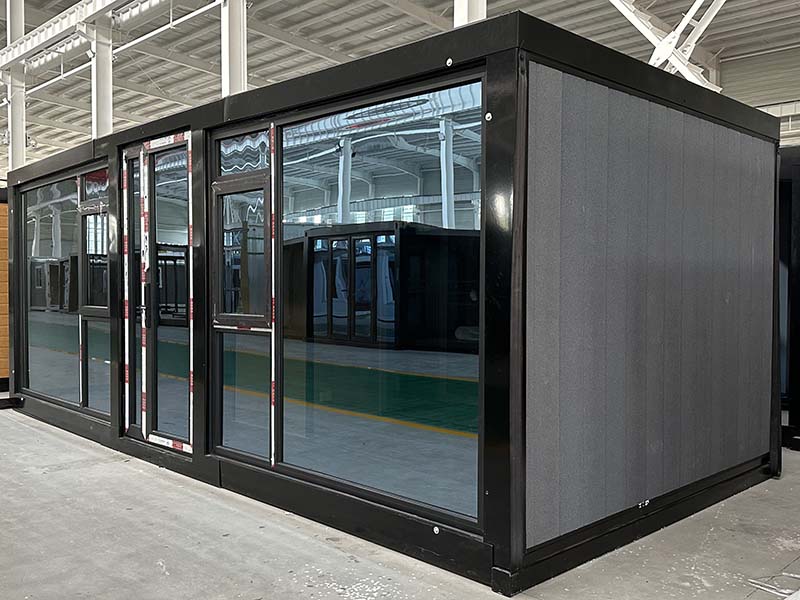

RISE 21'X10'

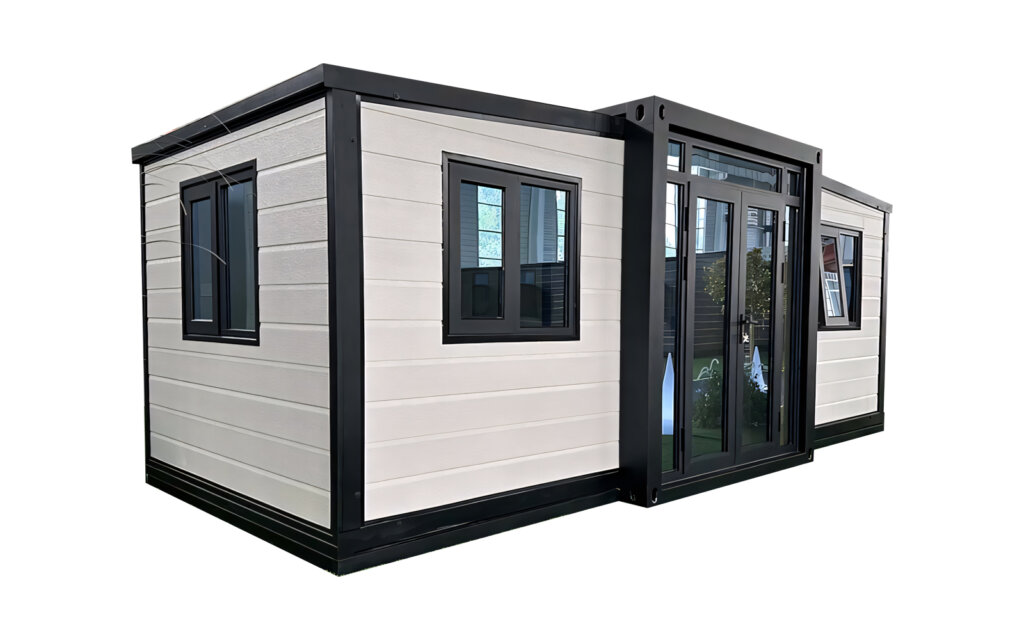

The series(21x10 Expandable Box House) best suited for long-term comfortable family living

Dimensions 21’X 10’X H8′
210 sq ft of Space
Frame：Thickened galvanized square tube
Roof：EPS color steel composite board/Nano thermal insulation board
Wall：EPS color steel composite board/Flame retardant grade B
Floor：Bamboo plywood/SPC stone plastic
Door：Security door(3’X6.6′)
Window：Aluminum alloy/Double-layer tempered glass/Window screening(3’X3′)
Light：LED
Fire rating: A
Wind resistance level: 10
Earthquake resistance level: 8
Thermal insulation performance：-35°~45°
Waterproof performance level：1
Service life in years：30

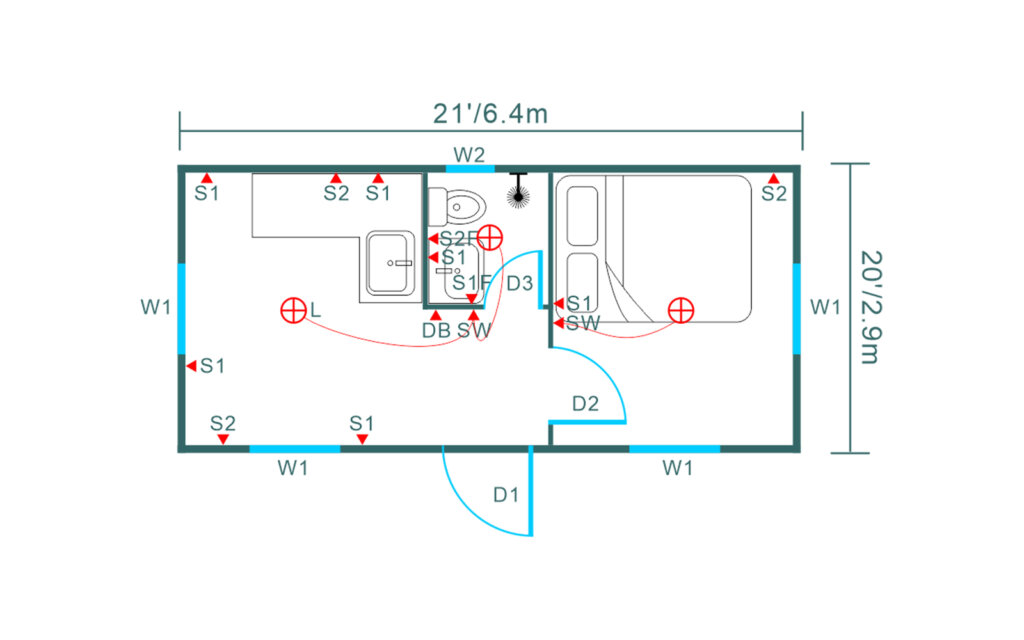

D1=Entrance door*1
D2=Interior door*1
D3=Bathroom door*1
W1=Sliding window*4
W2=Ventilation window*1
DB=Distribution box*1
L=Light*3
SW=Switch*2
S1=10A socket*5
S1F=10A water proof
socket*1
S2=16A socket*3
S1F=16A water proof socket*1

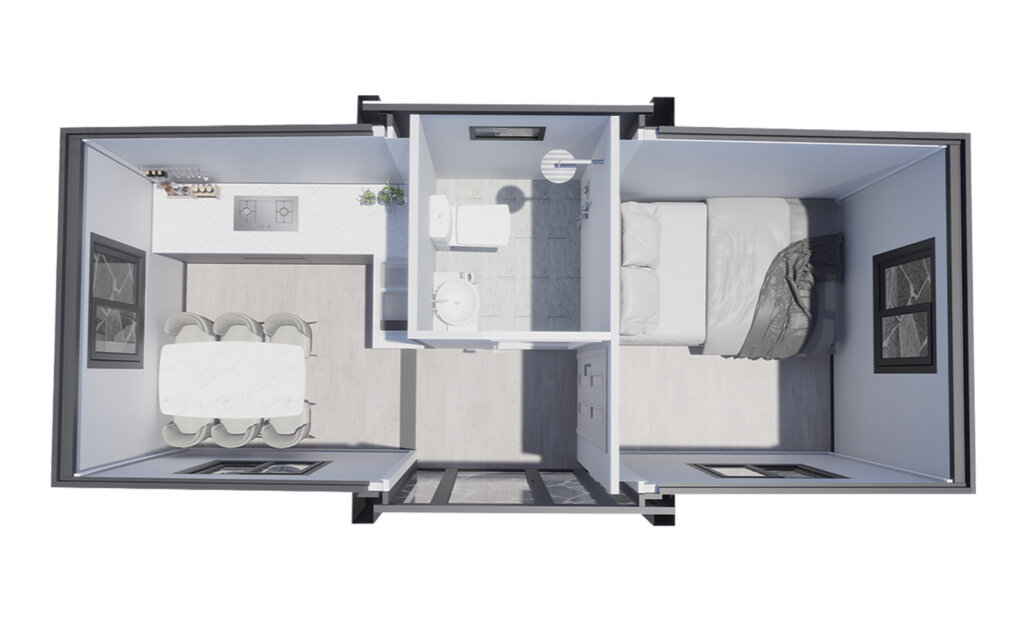

Standard layout: Bedroom,Bathroom,Kitchen

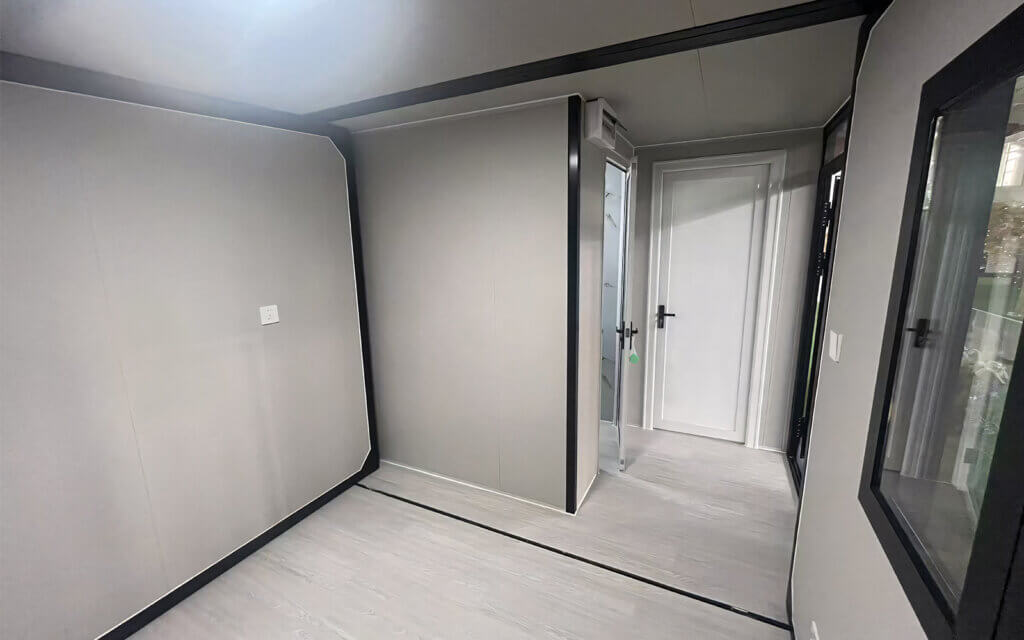

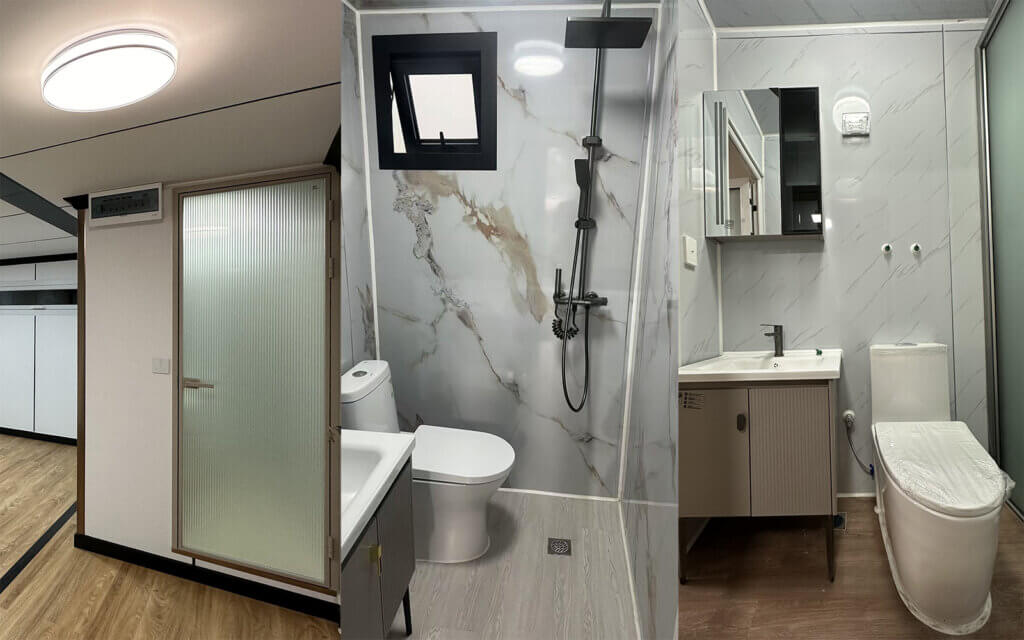

Indoor real photos

Interior door：Aluminum-wood door（2.6’X6.9’）

Bathroom door：Frosted glass
Ventilation window：Outward opening/Aluminum+Frosted glass（3.2’X1.6’）
Disc ceiling light
Shower head
Wall panels：SPC Stone crystal
Floor drain odour-resistant
Light mirror cabinet：Intelligent fill light
Wash basin：Oak cabinet
Toilet

“L”cupboard：White artificial marble countertop/Ecological Panel
Sink&Faucet：Stainless steel

Floor
Interior wall
Exterior wall

Expand both sides of the roof to the highest point
Lay the floors on both sides flat to the ground
Erect the two side walls and connect them to the roof
Stand up the front and back walls, fix all the joints with screws,
and complete the assembly

Framework detection
Assembly process inspection
Final inspection

RISE SERIES

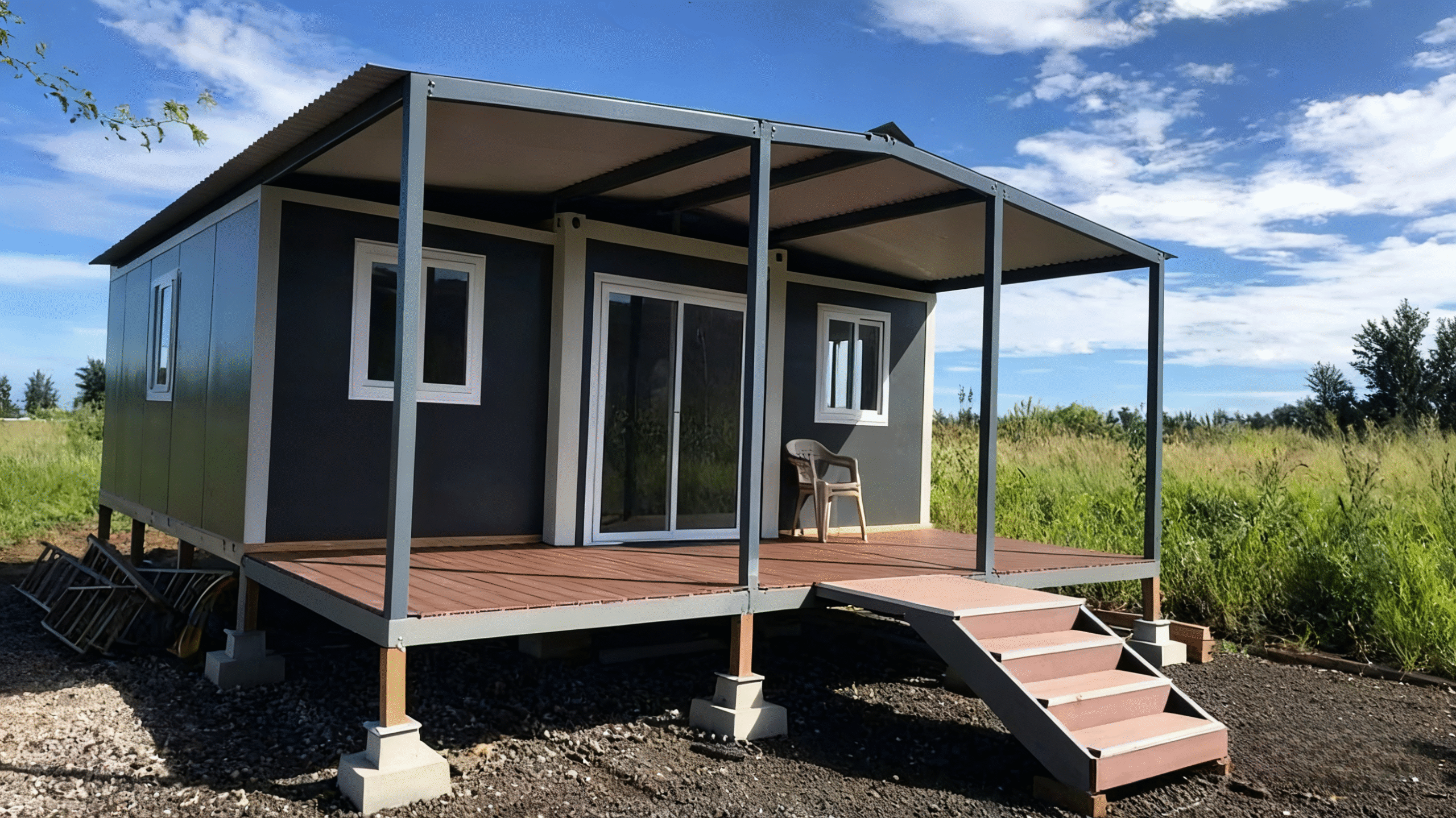

The RISE series is an upgrade to the BASE series. It shares the same structure and features, but features a more streamlined interior layout with the addition of a bathroom, bedroom, and kitchen. This upgrade provides comprehensive electrical and plumbing systems, making it even more suitable for living. It can be placed in your own backyard to entertain friends and family, or used as a vacation retreat in the mountains, forests, or by the sea.

The RISE 21’x10′, with a usable area of 210 square feet, is the smallest unit in the series and is suitable for one or two people. A variety of flooring, interior, and exterior wall colors are available, and entire walls can be converted to glass to create your own dream cabin.
